Dell WD19 Type-C Docking Station | Used

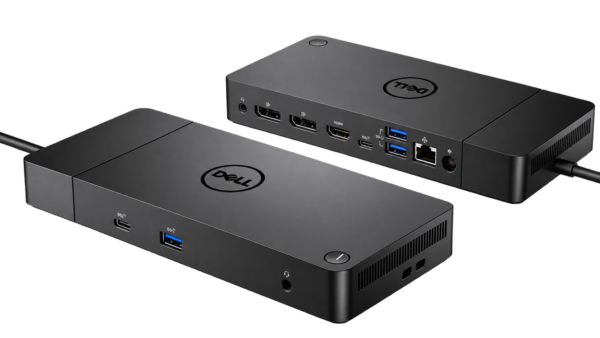

Dell WD19 USB-C Commercial Docking Station

Transform your mobile computer into a powerful, fully connected desktop workstation with the Dell WD19 Commercial Docking Station. Engineered for corporate IT environments, home offices, and modern flexible hot-desking setups, the Dell WD19 streamlines daily workflow by linking power, data, audio, and high-resolution video through a single universal USB-C cable. Eliminate desktop cable clutter and expand your laptop’s connectivity with rapid data transfer speeds, enterprise management capabilities, and powerful multi-display output.

High-Speed Power Delivery with Dell ExpressCharge

Never worry about running out of battery during critical work projects. The Dell WD19 features advanced power delivery options built to keep your system powered and ready:

• ExpressCharge Technology: Dell ExpressCharge allows you to charge up to 80% of your compatible laptop battery in just one hour, ensuring maximum mobility when transitioning between desks and meeting rooms.

• ExpressCharge Boost: Need a fast battery top-up before heading to a meeting? ExpressCharge Boost delivers up to a 35% charge in just 20 minutes.

• Robust Power Output: Configured with a 130W or 180W AC power adapter, the dock delivers up to 90W of power pass-through to Dell laptops (and up to 130W on select Dell systems supporting proprietary power delivery protocols) alongside standard USB Type-C power delivery (PD) for non-Dell laptops.

Future-Proof Modular Design

Unlike standard rigid docking stations, the Dell WD19 is built with a modular architecture that adapts as your office technology evolves:

• Swappable Module Interface: The USB-C connection module can be easily upgraded in the field without replacing the entire docking station. If your workflow requires dual Thunderbolt 3 or high-power dual USB-C connectivity in the future, you can simply upgrade the dock module.

• Simplified IT Maintenance: Enterprise IT administrators can perform firmware updates seamlessly without disrupting user productivity, deploying dock firmware updates in minutes while the laptop remains connected.

Multi-Display Productivity & High-Speed Data

Expand your digital workspace across multiple screens for effortless multitasking, coding, spreadsheet analysis, and content creation:

• Versatile Video Outputs: Equipped with dual DisplayPort 1.4 ports, a native HDMI 2.0b port, and a multifunction USB-C DisplayPort connection, the WD19 supports up to two Full HD (1080p) monitors at 60Hz, dual Quad HD (1440p) displays, or a single 4K Ultra HD monitor at 60Hz (depending on host system DisplayPort HBR2 or HBR3 capabilities).

• High-Speed USB 3.1 Ports: Transfer heavy media files and back up data fast with multiple USB 3.1 Gen 1 Type-A ports (5 Gbps speeds) and USB Type-C ports, including one front-facing USB-A port with PowerShare for charging smartphones even when the laptop is disconnected.

Enterprise-Grade Network & System Management

Designed with IT deployment in mind, the Dell WD19 includes advanced administrative features that make managing hardware fleets across corporate networks effortless:

• PXE Boot & Wake-on-LAN: Allows IT managers to perform remote system updates, image deployments, and wake up sleep-mode systems over the network.

• MAC Address Pass-Through: Simplifies network access control by passing the host laptop’s unique MAC address directly through the dock, keeping enterprise network security policies intact.

Technical Specifications:

• Product Type: USB-C Docking Station
• Host Interface: USB-C Cable (1.0 meter attached cable)
• Video Interfaces: 2x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB-C DisplayPort / Multifunction
• Max Resolution Support: Dual FHD (1920 x 1080 @ 60Hz), Dual QHD (2560 x 1440 @ 60Hz), or Single 4K (3840 x 2160 @ 60Hz)
• USB Ports: 3x USB 3.1 Gen 1 Type-A (1x PowerShare), 2x USB 3.1 Gen 1 Type-C (1x front, 1x rear)
• Networking: 1x RJ-45 Gigabit Ethernet Port
• Audio Ports: 1x Front Combo Audio Headset Jack, 1x Rear Speaker Output Line-Out
• Power Delivery: Delivers up to 90W power to non-Dell / standard USB-C laptops; up to 130W to supported Dell systems (with 180W AC adapter)
• Security: 1x Kensington Lock Slot, 1x Noble Wedge Lock Slot
• Dimensions: 205 mm x 90 mm x 29 mm (8.07″ x 3.54″ x 1.14″)
• Weight: 585 g (1.29 lbs)
