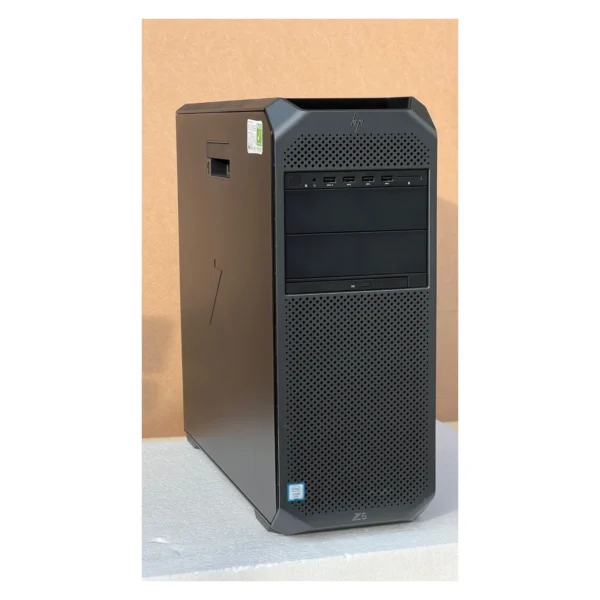

HP Z6 G4 Tower Workstation

HP Z6 G4 Tower Workstation: Scalable Enterprise Computing for Complex Technical Workloads

In high-demand technical environments—such as 3D animation studios, architectural engineering firms, artificial intelligence research labs, and financial analytics desks—standard desktop computers quickly hit processing ceilings, memory bottlenecks, and thermal limits. The HP Z6 G4 Workstation is engineered from the ground up to solve these mission-critical computing challenges. Delivering a perfect balance between raw central processing power, graphics card expandability, and silent thermal performance, the Z6 G4 provides an enterprise-class computing foundation that grows seamlessly alongside your organization’s evolving workload demands. Designed for continuous 24/7/365 operation and backed by extensive Independent Software Vendor (ISV) application testing, the HP Z6 G4 ensures total hardware stability and long-term computing endurance.

Heavyweight Processing Power with Intel Xeon Gold 6138

Harness massive server-grade multi-core compute density built for heavy multi-threaded workflows:

• 20-Core Intel Xeon Gold 6138 Processor: Featuring an incredible 20 physical cores and 40 computing threads running at a base clock speed of 2.00 GHz with Intel Turbo Boost Max Technology pushing frequencies up to 3.70 GHz, the Xeon Gold 6138 effortlessly handles massive multi-threaded tasks such as photorealistic 3D rendering, scientific simulation, video encoding, and virtual machine hosting.

• 27.5MB Intel Smart Cache Architecture: A massive 27.5MB cache buffer accelerates data transfer between the processor cores and physical RAM, dramatically reducing memory latency during complex database calculations and AI model training.

• 16GB High-Speed DDR4 ECC Registered RAM: Fitted with 16GB of DDR4 ECC Registered memory across a 6-channel memory architecture (expandable up to an astonishing 384GB with a single CPU or 768GB with dual processors across 12 DIMM slots). Error-Correcting Code (ECC) memory proactively identifies and corrects single-bit memory corruptions, preventing system crashes during multi-hour rendering or simulation runs.

• Dual-Processor Scalability: The motherboard is built with dual LGA3647 sockets, allowing you to easily add a second Intel Xeon Scalable CPU via an optional CPU riser card to double your total core count up to 40 cores and 80 threads when workload demands expand.

Fast SSD Storage, Advanced Acoustics, and Security Architecture

Engineered for immediate responsiveness, whisper-quiet operation, and hardware-enforced protection:

• High-Speed 512GB Solid-State Drive (SSD): Delivers rapid system boot-up times, instantaneous application launching, and high data read/write speeds for massive project files and datasets.

• Innovative Thermal Management: HP’s advanced acoustic design utilizes strategically placed internal temperature sensors and dedicated airflow channels to direct fresh external air across the Xeon processor, memory slots, and PCIe expansion bays. This keeps the system whisper-quiet even under 100% CPU utilization.

• HP Sure Start Gen4 Hardware Security: Features self-healing hardware-enforced BIOS protection that automatically detects, isolates, and recovers the BIOS from malware or rootkit attacks in real time without user intervention.

Tool-Less Modular Design and Professional Expansion Capabilities

Effortlessly maintain, upgrade, and connect external peripheral suites and high-speed networking:

• Tool-Less Modular Chassis: Featuring distinctive interior red touch-point handles, the Z6 G4 allows IT administrators to replace power supplies, add hard drives, install additional RAM, or swap PCIe expansion cards in seconds without screwdrivers.

• Front Panel I/O Access: Includes convenient front access to high-speed USB 3.1 Gen 1 Type-A ports, an optional USB 3.1 Type-C port, a universal audio headset jack, and an SD card reader.

• Rear Peripheral Connectivity: Equipped with additional USB 3.1 ports, dual Gigabit Ethernet (RJ-45) LAN ports for network redundancy and team bonding, audio line-in/line-out jacks, and multiple PCIe Gen 3 slots capable of housing high-end professional GPUs (such as NVIDIA RTX or Quadro cards) alongside M.2 NVMe SSD expansion cards.

Technical Specifications:

• Model Name: HP Z6 G4 Workstation
• Processor: Intel Xeon Gold 6138 (20 Cores, 40 Threads, 2.00 GHz Base, 3.70 GHz Turbo, 27.5MB Cache)
• Sockets: Dual LGA3647 Sockets (Single CPU installed; dual CPU capable via riser card)
• Chipset: Intel C621 Chipset
• System Memory (RAM): 16GB DDR4 ECC Registered Memory (Expandable up to 768GB across 12 DIMM slots)
• Primary Storage: 512GB 2.5-inch / M.2 SATA Solid-State Drive (SSD)
• Graphics Capability: PCIe x16 Gen 3 slots available for dedicated NVIDIA RTX, Quadro, or AMD Radeon Pro GPUs
• Expansion Slots: 2x PCIe x16 Gen 3, 3x PCIe x4 Gen 3, 1x PCIe x8 Gen 3, 2x M.2 PCIe x4 2280 slots
• Front Ports: 4x USB 3.1 Gen 1 Type-A, 1x Headset Audio Jack, 1x SD Card Reader
• Rear Ports: 2x Gigabit Ethernet (RJ-45), 6x USB 3.1 Gen 1 Type-A, 1x Audio Line-In, 1x Audio Line-Out, 2x PS/2 Ports
• Power Supply: 1000W 90% Efficient 80 PLUS Gold Power Supply
• Form Factor: Convertible Tower Workstation Chassis (Black with integrated front and rear handles)
